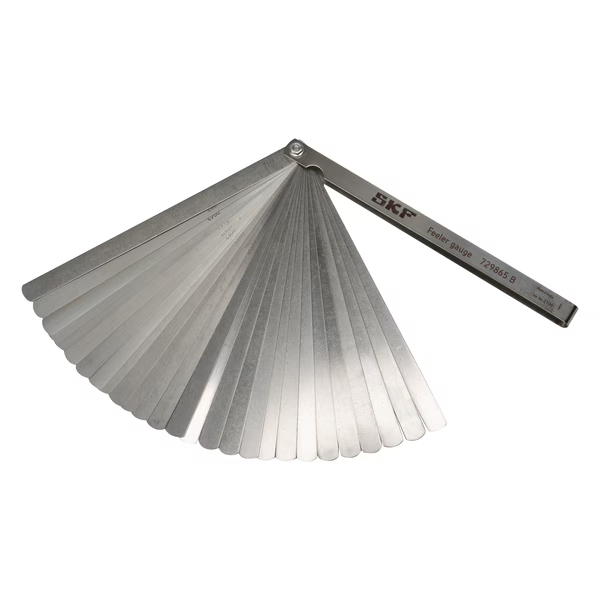

729865 B
Feeler gauge with 29 long blades
SKF Feeler Gauges 729865 B are designed to mearure clearances. A typical application is to measure the internal clearance of spherical roller bearings during the mounting process. The 729865 B consists of 29 blades of 200 mm (8 in.) in a steel cage.
- Comprehensive set of feeler gauges

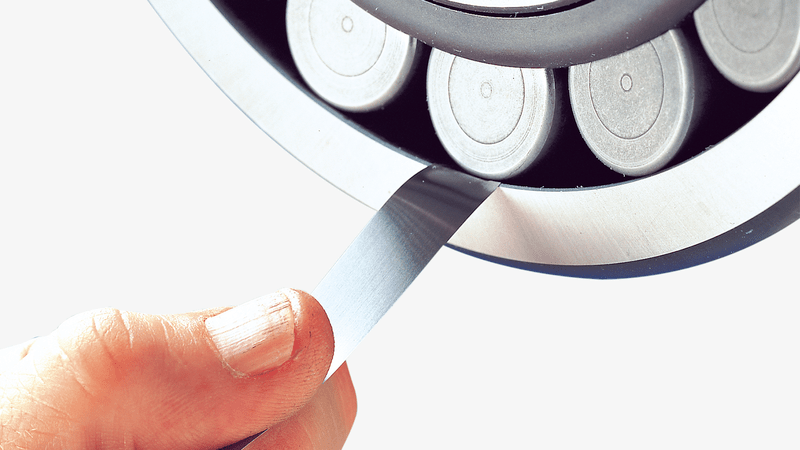

- Suitable to measure internal bearing clearance of spherical roller bearings
- 29x blades of 200 mm (8 in.) length
- Protective steel cage
Recommended applications:
- To mount bearings without the SKF drive up method (manual way to reduce the radial internal clearance)
- For checking clearances in bearings
- For inspecting clearances in other applications.
Suitable for bearing mounting on a Tapered seating (conical shaft):
Yes, as part of checking the radial internal clearance to mount the bearing with the correct interference fit.
Suitable for bearing mounting on a Sleeve (adapter or withdrawal):
Yes, as part of checking the radial internal clearance to mount the bearing with the correct interference fit.
Blade thickness:
0.05 mm / 0.09 mm / 0.10 mm / 0.11 mm / 0.12 mm / 0.13 mm / 0.14 mm / 0.15 mm / 0.16 mm / 0.17 mm / 0.18 mm / 0.19 mm / 0.20 mm / 0.25 mm / 0.30 mm / 0.35 mm / 0.40 mm / 0.45 mm / 0.50 mm / 0.55 mm / 0.60 mm / 0.65 mm / 0.70 mm / 0.75 mm / 0.80 mm / 0.85 mm / 0.90 mm / 0.95 mm / 1.00
Blade thickness tolerances:
- for blades with thickness upto and including 0.10 mm: +0.007 / -0.005 mm
- for blades with thickness from 0.11 mm to 0.35 mm: +0.010 / -0.005 mm
- for blades with thickness from 0.35 mm to 0.65 mm: +0.015 / -0.007 mm
- for blades with thickness 0.65 mm and above: +0.020 / -0.009 mm
Special features:
- Protective stainless steel housing
- Each blade marked with its thickness
- Supplied in plastic storage cover
