SKF TMBS 100E Strong Back Bearing Puller Set
Strong back puller with Hydraulic spindle

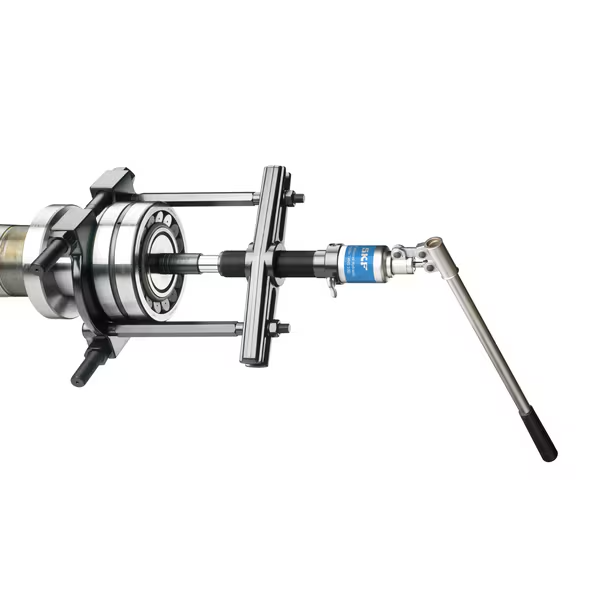

The SKF TMBS 100E strong back puller facilitates dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or when the application requires a long reach. The puller is operated with a hydraulic spindle for effortless dismounting up to 100 kN (11.2 US ton). A special separator design is used that can be easily inserted between the bearing and the shoulder on the shaft.
- Easily separator placement between bearing and shoulder on the shaft
- Spring-loaded centre point of spindle allows easy puller centring and minimises the risk of shaft damage
- Hydraulic spindle with safety valve for safe and effortless dismounting
- Firm grip behind the bearing's inner ring reduces the force required to dismount the bearing

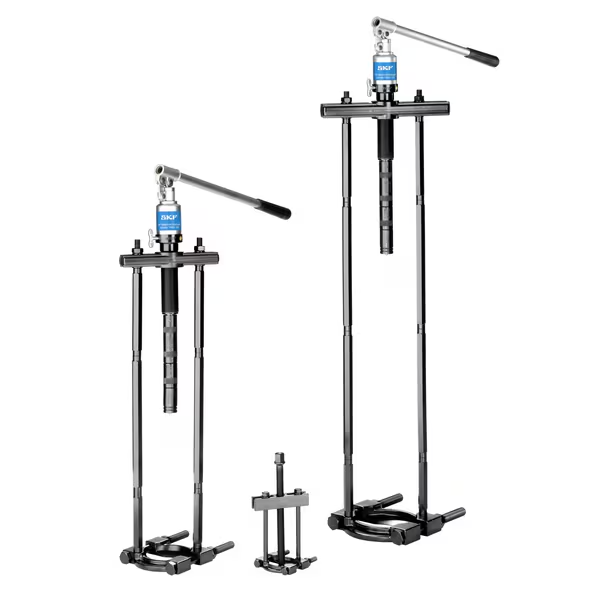

- Quick adaptation to required pulling length with 2x hydraulic spindle extension pieces and extension rods for pulling lengths up to 816 mm (32.1 in.)
Recommended applications:
For dismounting of bearings, gears, pulleys and other industrial ring shaped components from shafts in industrial, construction and agricultural applications, where there is limited space behind the component and traditional jaw pullers won't fit.
Special features:
- Provide the possibility to engage the inner ring of the bearing, thus making sure that no withdrawal force is transmitted through the rolling elements
- Comes with various extension rods to allow usage on longer shafts
- Hydraulic spindle with integrated safety valve for safer use

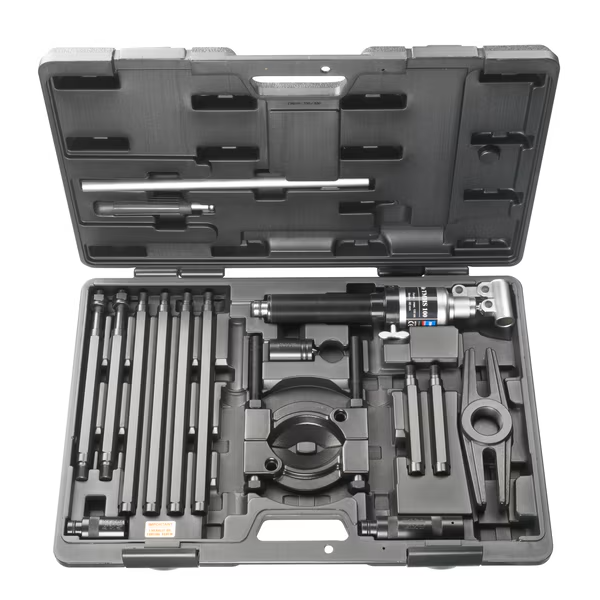

Content:
- 1 x separator set
- 1 x beam
- 2 x main rods
- 4 x extension rods, 285 mm
- 2 x extension rods, 125 mm
- 1 x hydraulic spindle TMHS 100 (with handle bar)
- 2 x extension pieces for hydraulic spindle
- 50, 100 mm
- 1 x nosepiece with center point for hydraulic spindle
- IFU QR Code card
- Case
