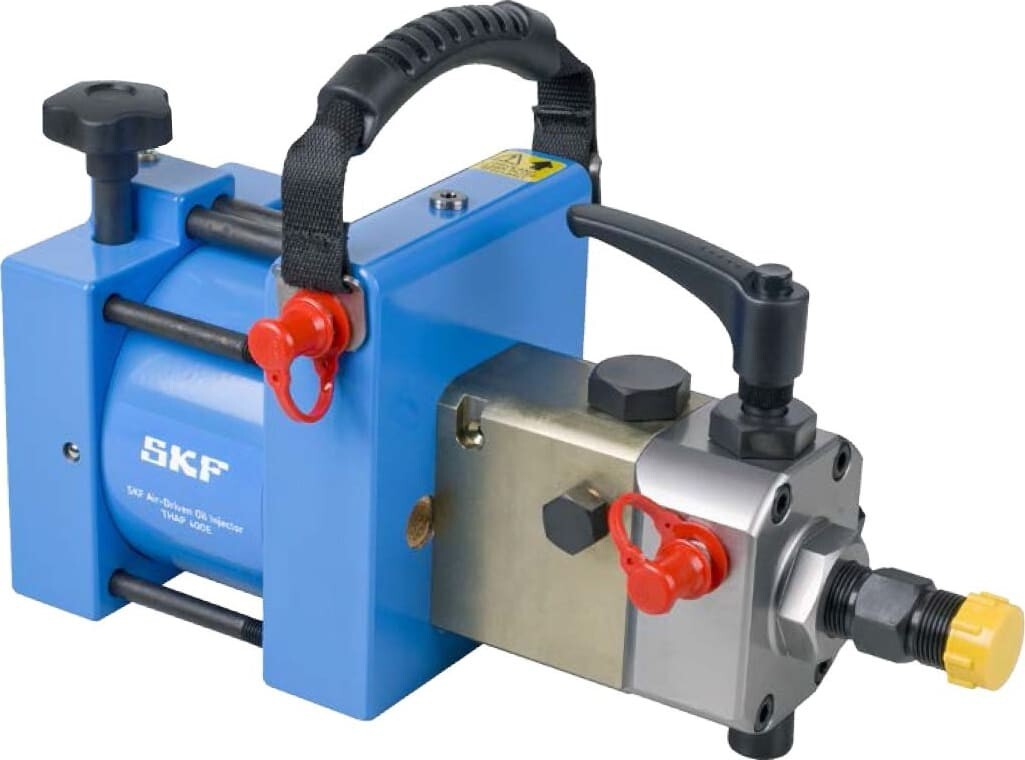

SKF THAP 150E air-driven hydraulic pump
Air-driven hydraulic pump set
The THAP 150E/SK1 air-driven hydraulic pump set can be used for mounting SKF OK Coupling hydraulic chambers and for mounting and dismounting large rolling element bearings using the oil injection method. It is also suitable for similar applications for pressures up to 1500 bar (150 MPa / 21750 psi). The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy carrying case including oil suction and return hoses with quick connect couplings, as well as a high pressure hose, pressure gauges and nipples to connect to the application. SKF Mounting and Dismounting fluids are recommended for use with the THAP 150E.
- Time savings compared to hand operated pumps
- Portable
- Continuous supply of oil
- Internal air pressure limiter helps ensure safe operation
- Low air consumption
- Wide operating temperature range
- Includes high pressure hose and pressure gauge
- Packed in a sturdy carrying case
Recommended applications:
- Bolt tensioners
- Mounting of propellers
- Oil injection for large bearing seatings

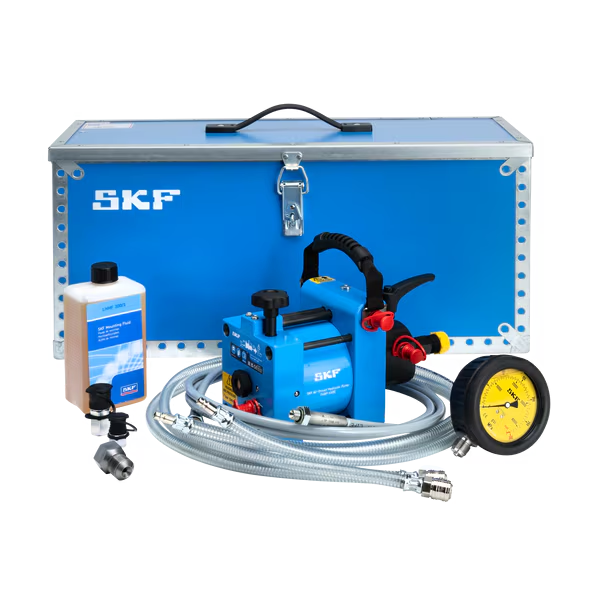

Content:
-
- Air driven pump 150 MPa (21 750 psi)
- 2x Low pressure hoses with couplings(1.5 m/4.9 ft)
- Air hose coupling(f)
- Mounting fluid (1 ltr/0.22 gal)
- Pressure gauge 300 MPa (43 500 psi)
- Nipple G 3/4 (m) - G 1/4 (f)
- Pressure hose (3 m /9.8 ft)
- Quick connection coupling
- Quick connection nipple
- Instructions for use
- Carrying case
