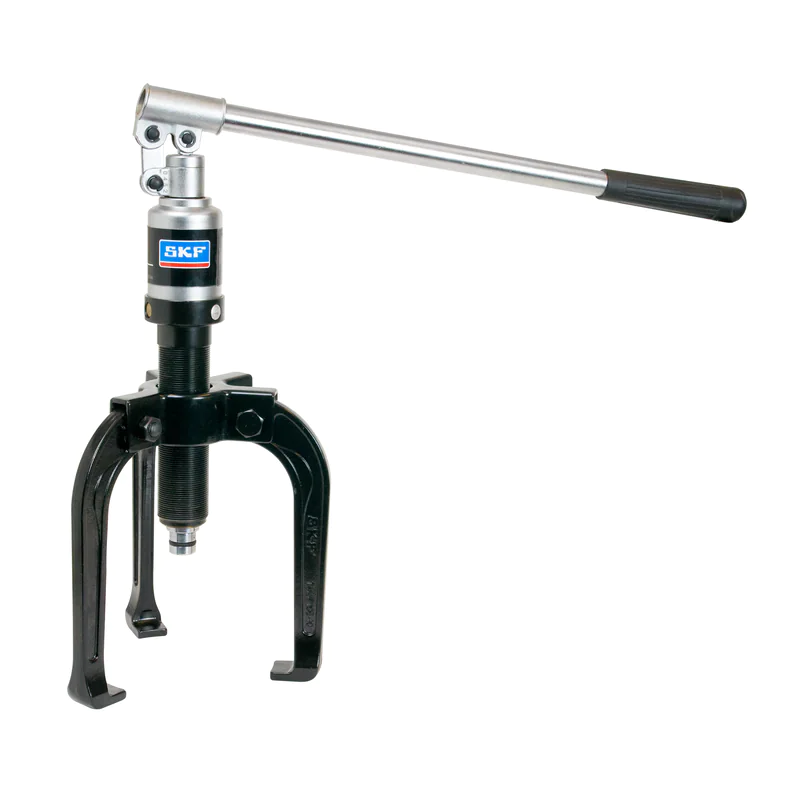

SKF TMHP 10E hydraulic puller
Hydraulic jaw puller kit
The TMHP 10E is a complete puller kit for bearing dismounting. The kit includes three different arm sets that can be used in a 2-arm or 3-arm configuration. The puller uses a hydraulic spindle for easy dismounting with dismounting forces up to 100 kN (11.2 US ton). With a stroke of 80 mm (3.1 in.), the spindle facilitates dismounting in one operation. Safety is supported through a self-locking arms that reduce puller slippage under load, a spring-loaded centre point to enable easy spindle centring and a safety valve to prevent puller overload.
- Versatile kit with three different arm lengths usable in 2-arm or 3-arm configuration
- Effortless dismounting with hydraulic spindle
- Self-locking arms minimise risks of slippage under load
- Spring-loaded centre point allows easy puller centring
- Supplied with three hydraulic spindle extension pieces to allow quick adaptation to required pulling length
- Hydraulic spindle is equipped with safety valve to prevent puller overload
Recommended applications:

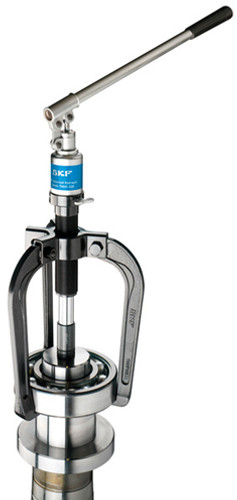

For dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft. Can be used as two armed puller if space around the component is restricted.
Special features:
- Centring and self locking system for firm grip of the component
- Useable as 2 or 3 armed puller, Provided with 3 different arm sets, Provided with various spindle extension pieces to quickly adapt the reach
- Hydraulic spindle with integrated safety valve for safer use

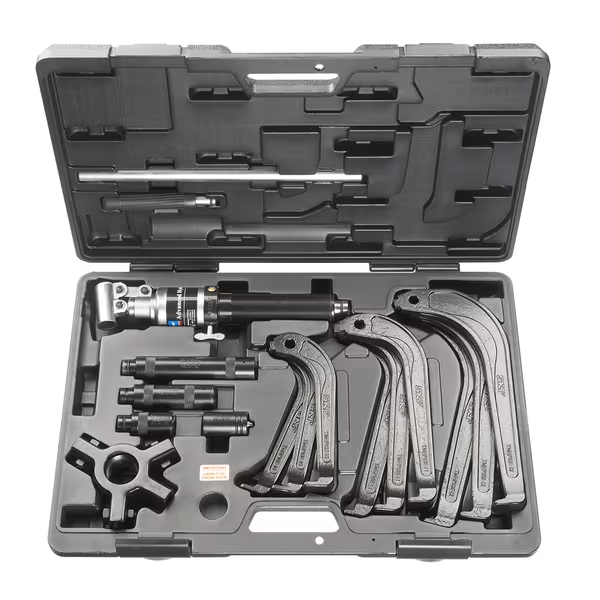

Content:
- 1 x arm-assembly stand
- 3 x arms, set 1 (TMHP 10E-10)
- 3 x arms, set 2 (TMHP 10E-11)
- 3 x arms, set 3 (TMHP 10E-12)
- 1 x hydraulic spindle TMHS 100 (with handle bar)
- 3 x extension pieces for hydraulic spindle: 50, 100, 150 mm
- 1 x nosepiece with centre point for hydraulic spindle
- IFU QR Code card
- Case
